X-Plug XP004

Product code: 420802

£1,185.54 INC VAT
£987.95 EX VAT

The X-Plug XP004 is a mechanical plug specifically designed to SEAL the void formed in a concrete wall by the removal of a taper tie rod or pass through tie...

More information
Free next working day delivery
Click and Collect Available
BIG DISCOUNTS ON BULK ORDERS Call 0330 053 6145 for a bespoke quote
Product Description

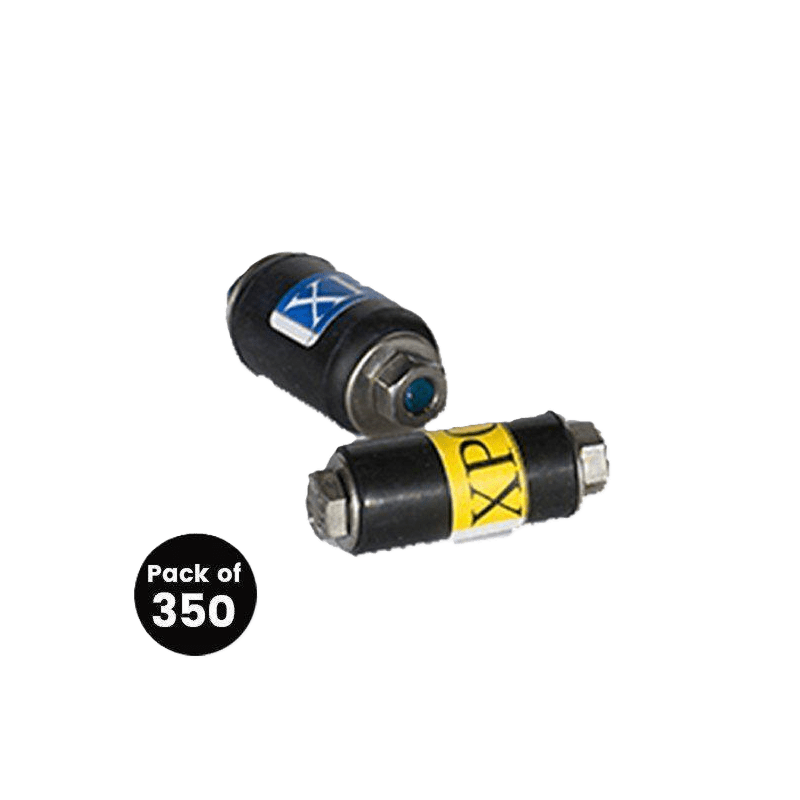

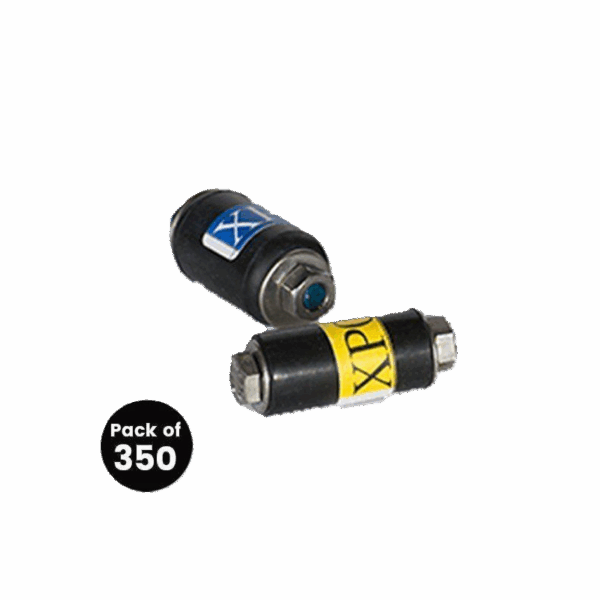

The X-Plug XP004 is a mechanical plug specifically designed to SEAL the void formed in a concrete wall by the removal of a taper tie rod or pass through tie sleeve. With the X-Plug’s mechanical design, tightening of the stainless steel nut causes an expansion of the EPDM rubber plug, increasing its diameter inside the taper tie void. This action simultaneously compresses the main body plug onto the bolt to create a liquid-tight seal between the plug and the wall of the taper tie void.
  • Easy to install
  • Seal taper tie voids without grout on either side of the plug to a head pressure rating of nearly 300 ft
  • 304 stainless steel bolt is compression set at 50 lbs. into the rubber grommet, to prevent spinning during installation
  • Xylan coating is applied to the stainless steel bolt to boost the corrosive resistance an extra 500-1000 hours in the ASTM B1117 Salt Spray Test
  • Available in six different sizes to accommodate all conventional taper ties
  X-Plug is used for waterproofing of tapered tie rods and pass-through sleeves in walls of water retaining or excluding structures

Product code: 420802

Colour
-
Size
Suits 300ml - 400ml cartridges
