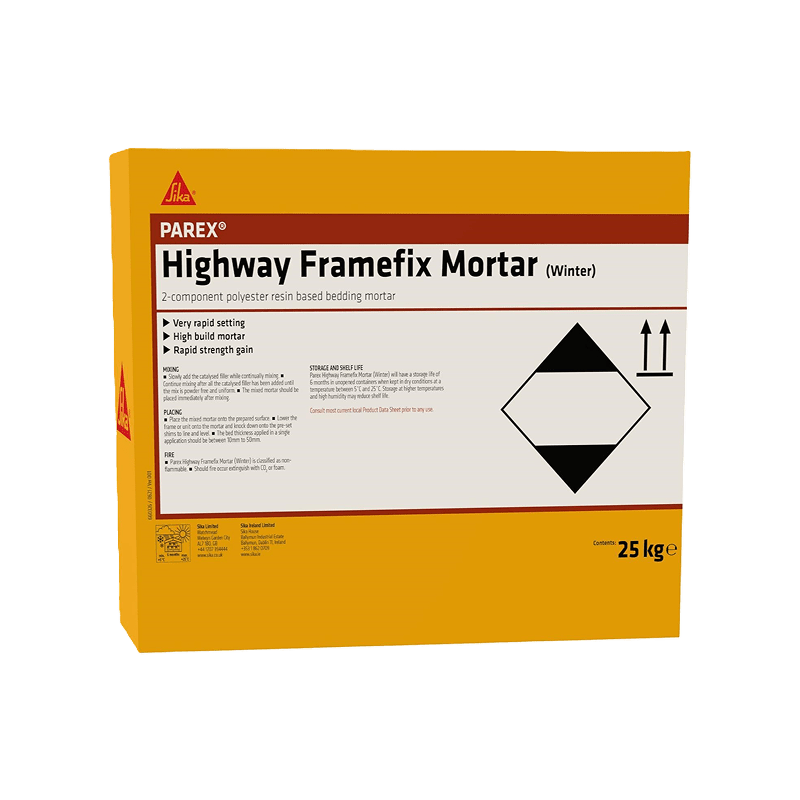

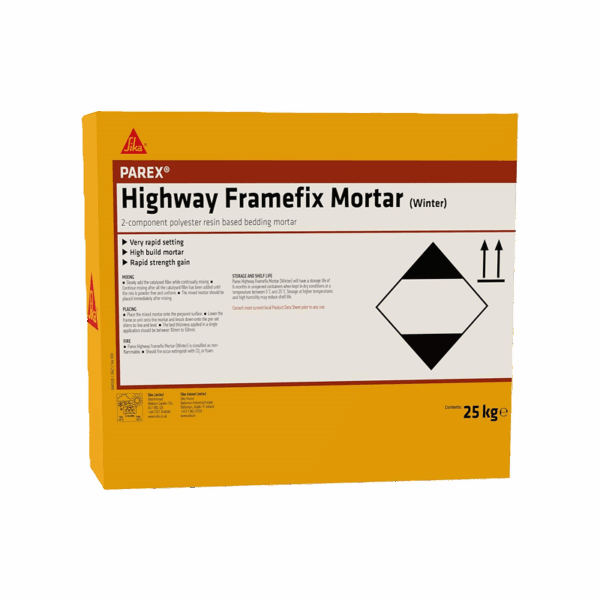

Parex Highway FrameFix Mortar Winter 25kg

Product code: 660326

£152.99 INC VAT
£127.49 EX VAT

Parex Highway Framefix Mortar Winter is polyester resin based material used for the bedding and leveling of all types of frames in vehicular road surfaces in the most demanding situations. The product is supplied as a two pack system ready for onsite mixing consisting of two tins of base resin and two bags of catalysed filler. The mixed mortar will harden to give rapid strength gain reaching 50N/mm2 in 1 hour allowing road opening to vehicular traffic within 3/4 to 1 hour. The placed frames will resist compressive and high impact loads The chemical mechanism will continue at temperatures down to 0°C with only a small increase in hardening time. The hardened mortar is resistant to chemical attack from petroleum products and road salt. Two grades, Summer and Winter, are available.
Free standard delivery
BIG DISCOUNTS ON BULK ORDERS Call 0330 053 6145 for a bespoke quote
Parex Highway Framefix Mortar Winter is polyester resin based material used for the bedding and leveling of all types of frames in vehicular road surfaces in the most demanding situations. The product is supplied as a two pack system ready for onsite mixing consisting of two tins of base resin and two bags of catalysed filler.
The mixed mortar will harden to give rapid strength gain reaching 50N/mm2 in 1 hour allowing road opening to vehicular traffic within 3/4 to 1 hour. The placed frames will resist compressive and high impact loads The chemical mechanism will continue at temperatures down to 0°C with only a small increase in hardening time. The hardened mortar is resistant to chemical attack from petroleum products and road salt. Two grades, Summer and Winter, are available. Parex Highway Framefix Mortar complies with Highways Agency Advice Note 104/09 Design Manual for Roads and Bridges – Chamber Tops and Gully Tops for Road Drainage and Services: Installation and Maintenance.
  • Easy to use.
  • No additional materials (e.g. water) needed - all components supplied.
  • Application range: 5 to 50 mm per pass.

Uses include:

  • Re-bedding of raised manholes.
  • Support of road furniture.
  • Bedding of frames in new roads.Typical Mortar Properties @ 20°CWorking Time @ 12°
Framefix Mortar Winter Grade: 8-12 minutes (above 20°C setting will be rapid)

Specification Outline

Bedding of frames shall be carried out using Parex Highway Framefix Mortar as manufactured by Parex Ltd. The product must be stored, handled and placed strictly in accordance with the manufacturer’s instructions. Quality Assurance Parex Limited has an integrated business management system. This is externally accredited by UK CARES to BS EN ISO 9001:2015, BS EN ISO 14001:2015, BS ISO 45001:2018 and BES 6001. Standards Parex Highway Framefix Mortar has been tested in accordance with the relevant parts of BS 6319, HA104/09.

Instructions For Use

Preparation Laitance and all loose material including dust, oil and grease should be removed in order to produce a sound substrate. Any loose brickwork should be re-bedded using a slightly resin rich mortar mix. Mixing Mixing must be carried out in the plastic package pail or a similar suitable mixing vessel. Suitable mixers include a slow speed high torque drill and Mortar Stirrer. For full pack mixing of Frame Fix Mortar pour all of the resin contained in the two tins within the pack into the mixing pail. Slowly add the catalysed filler while continually mixing. Continue mixing after all the catalysed filler has been added until the mix is powder free and uniform. The chemical reaction of setting is rapid. The mixed mortar should be placed immediately after mixing. The working time may be extended in cold ambient conditions and may be shortened in hot ambient conditions.
Placing Set suitable leveling shims onto the working surface ready to receive the frame or unit. Place the unit dry than check for level. Adjust if necessary. Place the mixed mortar onto the prepared surface and lower the frame or unit onto the mortar and knock down onto the pre-set shims to line and level. The bed thickness applied in a single application should be between 10mm to 50mm. Thicker support beds can be achieved by applying further material as soon as the lower bed has hardened sufficiently not to distort under the additional work. The placed mortar will have hardened sufficiently to carry out further work, such as haunching, within 20 to 30 minutes depending on the surrounding ambient conditions and product grade. Clean tools with Solvent before mortar has started to harden. Limitations – Product not suitable as a wearing course. Do not place material if obvious setting is taking place. Curing No special curing is required at temperatures between 5°C and 35°C. For placing temperatures outside this range, refer to Framefix Grout data sheet or contact the Technical Service Department.
For more information on Parex Highway Framefix Mortar Summer click here
To view our extensive range of Parex products click here
Size
25kg

Orders placed before 2pm Monday – Friday (excluding Bank Holidays) will be dispatched the same day if ‘Next Day Delivery’ is displayed on the product listing. Orders placed after this time will be dispatched the following working day.

Orders for non-stock items will be dispatched within 3-5 working days unless contacted by Customer Services.

Saturday and timed deliveries are available on request. Please contact [email protected] or call 01708 855 698 for more information.

Please note postcodes in some areas of the Scottish Highlands and offshore addresses require a delivery surcharge and in some cases can take longer to be delivered. Please contact [email protected] or call 01708 855 698 for a delivery quote.

AB36-38, AB55-56, FK17-21, G83, GY9, HS1-9, IM (ALL), IV (ALL), JE (ALL), KA27, KA28, KW0-14, KW15-17, PA20-78, PH15-18, PH19-29, PH32-33, PH45-48, PH30-31, PH34-44, PH49-99, PO38, ZE (ALL)



It is the customers responsibility to provide an accurate delivery address. If the courier is unable to deliver your order due to issues with access to the delivery address, your goods will be returned to the local delivery depot for delivery on the next working day. Please note a redelivery charge of up to £89 plus VAT per pallet may be applied. If your order is undelivered and returned to us a restocking fee may also be applied.



Please inform us of any delivery restrictions (eg weight restrictions, narrow roads). Failure to do so may incur a redelivery charge if the courier cannot access the delivery address due to undeclared or incorrect delivery restrictions. A redelivery charge of up to £89 plus VAT per pallet may be applied.



If your order is over 150kg it may be delivered on a pallet. The courier will notify you of a two hour delivery window. In the event that no one is available at the address to receive the delivery a charge of up to £89 plus VAT per pallet may be applied for redelivery.

Browse:GroutsParex Suppliers
You may also like
Parex Fixopierre

Parex Fixopierre

From £29.94 INC VAT
From £24.95 EX VAT
Select options This product has multiple variants. The options may be chosen on the product page
Parex Paraguard

Parex Paraguard

From £43.79 INC VAT
From £36.49 EX VAT
Select options This product has multiple variants. The options may be chosen on the product page
Parex Kerbfix Winter 14kg

Parex Kerbfix Winter 14kg

£167.94 INC VAT
£139.95 EX VAT
Add to basket
Parex Kerbfix Summer 14kg

Parex Kerbfix Summer 14kg

£167.94 INC VAT
£139.95 EX VAT
Add to basket
Parex Monorex GF

Parex Monorex GF

From £20.34 INC VAT
From £16.95 EX VAT
Out of stock This product has multiple variants. The options may be chosen on the product page
Parex Epoxy Thixotropoic Crack Bonder

Parex Epoxy Thixotropoic Crack Bonder

£125.94 INC VAT
£104.95 EX VAT
Add to basket

Parex Highway FrameFix Mortar Winter FAQs

What is Parex Highway FrameFix Mortar Winter?

Parex Highway FrameFix Mortar Winter is a is a polyester based, rapid setting bedding mortar of all types of frames in vehicular road surfaces.

How do I prepare the surface before applying Parex Highway FrameFix Mortar Winter?

Laitance and all loose material including dust, oil and grease should be removed in order to produce a sound substrate. Any loose brickwork should be re-bedded using a slightly resin rich Parex Highway Framefix Mortar.

How do I mix Parex Highway FrameFix Mortar Winter?

Mixing must be carried out in the plastic package pail, or a similar suitable mixing vessel.

Suitable mixers include a slow speed, high torque drill and mortar stirrer.

For full pack mixing of Parex Highway Framefix Mortar, pour all of the resin contained in the two tins within the pack into the mixing pail.

Slowly add the catalysed filler while continually mixing.

Continue mixing after all the filler has been added until the mix is powder free and uniform. The correct mixed consistency is the same as damp sand. The chemical reaction of setting is rapid.

Note: The mixed mortar should be placed immediately after mixing. The working time may be extended in cold ambient conditions and may be shortened in hot ambient conditions.
